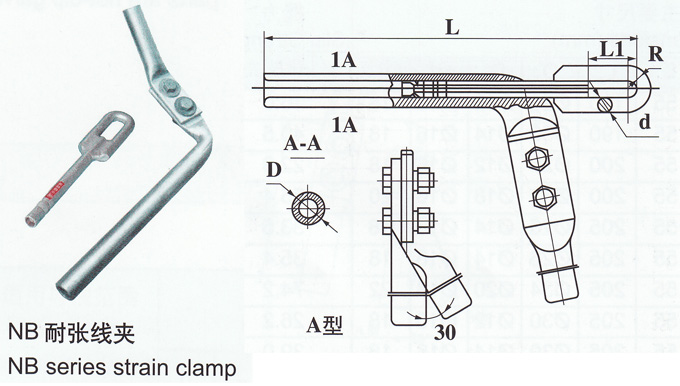

耐张线夹(爆压型)
Strain Clamp(bolt type) |
 |
型号
Catalog
No. |
适用导线
Applicable
Conductor |
主要尺寸Dimensions(mm) |
握力
Slip Strength
(kN) |
重量
Weight
(kg)B |
| D |
d |
L |
L1 |
R |
| NB-70/40A(B) |
LGJ-70/40 |
32 |
16 |
355 |
55 |
9 |
55 |
2.2 |
| NB-95/55A(B) |
LGJ-95/55 |
34 |
18 |
400 |
55 |
11 |
74 |
2.3 |
| NB-120/20A(B) |
LGJ-120/20 |
30 |
14 |
370 |
55 |
9 |
39 |
1.5 |
| NB-120/70A(B) |
LGJ-120/70 |
36 |
18 |
460 |
70 |
12 |
93 |
2.7 |
| NB-150/25A(B) |
LGJ-150/25 |
30 |
16 |
355 |
55 |
9 |
51 |
1.7 |
| NB-185/25A(B) |
LGJ-185/25 |
34 |
16 |
450 |
55 |
10 |
56 |
1.8 |
| NB-185/30A(B) |
LGJ-185/30 |
34 |
16 |
450 |
55 |
10 |
61 |
1.9 |
| NB-240/30A(B) |
LGJ-240/30 |
36 |
16 |
420 |
55 |
11 |
72 |
2.1 |
| NB-240/40A(B) |
LGJ-240/40 |
36 |
18 |
420 |
55 |
11 |
79 |
2.2 |
| NB-300/15A(B) |
LGJ-300/15 |
40 |
16 |
400 |
55 |
11 |
65 |
2.7 |
| NB-300/20A(B) |
LGJ-300/20 |
40 |
16 |
410 |
55 |
10 |
72 |
2.8 |
| NB-300/25A(B) |
LGJ-300/40 |
40 |
16 |
420 |
55 |
11 |
79 |
2.9 |
| NB-300-40A(B) |
LGJ-300-40 |
40 |
18 |
410 |
55 |
11 |
88 |
2.9 |
| NB-300/50A(B) |
LGJ-300/50 |
40 |
18 |
470 |
55 |
12 |
98 |
3.2 |
| NB-300/70A(B) |
LGJ-300/70 |
42 |
20 |
470 |
65 |
12 |
122 |
3.4 |
| NB-400/25A(B) |
LGJ-400/25 |
45 |
18 |
450 |
65 |
12 |
91 |
3.5 |
| NB-400/35A(B) |
LGJ-400/35 |
45 |
20 |
470 |
65 |
12 |
99 |
3.5 |
| NB-400/50A(B) |
LGJ-400/50 |
45 |
20 |
470 |
65 |
12 |
117 |
3.6 |
| NB-400/65A(B) |
LGJ-400/65 |
48 |
20 |
490 |
65 |
13 |
128 |
4.3 |
| NB-400/95A(B) |
LGJ-400/95 |
48 |
22 |
540 |
70 |
14 |
163 |
5.1 |
| NB-500/35A(B) |
LGJ-500/35 |
52 |
20 |
470 |
70 |
14 |
114 |
5.4 |
| NB-500/45A(B) |
LGJ-500/45 |
52 |
20 |
470 |
70 |
14 |
122 |
5.7 |
| NB-630/45A(B) |
LGJ-630/45 |
60 |
22 |
530 |
80 |
16 |
141 |
6.5 |
线夹本体和引流线夹为铝制件，其余为热镀锌钢制件。
The clamp boady and jumper are aluminium.The other parts are hot-dip galvanized steel. |
