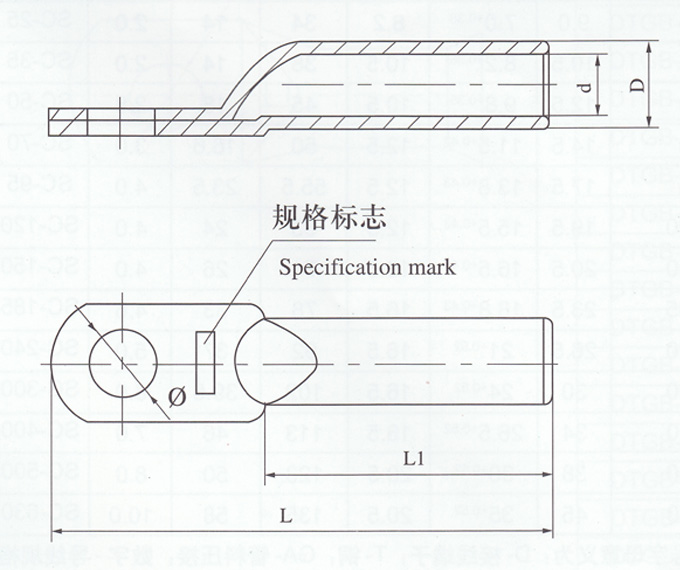

| 1）铜接线端子（堵油） Copper connecting terminals(oil-plugging) |
 |
| 型号Catalog No. |
主要尺寸Dimensions(mm) |
| Ф |
D |
d |
L |
L1 |
B |
|
DT-10 |
8.5 |
9 |
5.5 |
67 |
31 |
16 |
| DT-16 |
8.5 |
10 |
5.5 |
67 |
31 |
16 |
| DT-25 |
8.5 |
11 |
7 |
70 |
34 |
18 |
| DT-35 |
10.5 |
12 |
8.5 |
79 |
36 |
20.5 |
| DT-50 |
10.5 |
14 |
9.5 |
87 |
40 |
23 |
| DT-70 |
12.5 |
16 |
11.5 |
95 |
42 |
26 |
| DT-95 |
12.5 |
18 |
13.5 |
105 |
46 |
28 |
| DT-120 |
14.5 |
20 |
15 |
112 |
48 |
30 |
| DT-150 |
14.5 |
22 |
16.5 |
118 |
52 |
34 |
| DT-185 |
16.5 |
25 |
18.5 |
125 |
55 |
37 |
| DT-240 |
16.5 |
27 |
21 |
136 |
60 |
40 |
| DT-300 |
21 |
30 |
23 |
160 |
65 |
50 |
| DT-400 |
21 |
34 |
26 |
165 |
70 |
50 |
| DT-500 |
21 |
38 |
29 |
190 |
75 |
60 |
| DT-630 |
- |
45 |
34 |
220 |
85 |
80 |
| DT-800 |
- |
50 |
38 |
260 |
85 |
100 |
|
| 2）铝接线端子（堵油） Aluminium connecting terminals(oil-plugging) |
|
| 型号Catalog No. |
主要尺寸Dimensions(mm) |
| Ф |
D |
d |
L |
L1 |
B |
| DL-1-16 |
8.5 |
10 |
5.5 |
70 |
32 |
16 |
| DL-1-25 |
8.5 |
12 |
7 |
75 |
34 |
18 |
| DL-1-35 |
10.5 |
14 |
8.5 |
85 |
40 |
20.5 |
| DL-1-50 |
10.5 |
16 |
9.5 |
90 |
42 |
23 |
| DL-1-70 |
12.5 |
18 |
11.5 |
102 |
47 |
26 |
| DL-1-95 |
12.5 |
21 |
13.5 |
112 |
50 |
28 |
| DL-1-120 |
14.5 |
23 |
15 |
120 |
53 |
30 |
| DL-1-150 |
14.5 |
25 |
16.5 |
126 |
55 |
34 |
| DL-1-185 |
16.5 |
27 |
18.5 |
133 |
58 |
37 |
| DL-1-240 |
16.5 |
30 |
21 |
140 |
60 |
40 |
| DL-1-300 |
21 |
34 |
23 |
165 |
65 |
50 |
| DL-1-400 |
21 |
34 |
26.5 |
170 |
70 |
50 |
| DL-1-500 |
21 |
42 |
29.5 |
190 |
75 |
60 |
| DL-1-630 |
- |
54 |
34 |
225 |
80 |
80 |
| DL-1-800 |
- |
60 |
38 |
270 |
90 |
100 |
|
| 3）铜接线端子（管料） Copper connecting terminals(tubing) |
 |
| 型号Catalog No. |
主要尺寸Dimensions(mm) |
| Ф |
D |
d |
L |
L1 |
|
DT-(G)-10 |
4.5 |
8 |
5 |
50 |
31 |
|
DT-(G)-16 |
6.5 |
9 |
6 |
57 |
31 |
|
DT-(G)-25 |
6.5 |
10 |
7 |
62 |
34 |
|
DT-(G)-35 |
6.5 |
11 |
8 |
66 |
36 |
|
DT-(G)-50 |
8.5 |
13 |
10 |
72 |
40 |
|
DT-(G)-70 |
10.5 |
16 |
11.5 |
80 |
42 |
|
DT-(G)-95 |
10.5 |
18 |
13.5 |
87 |
46 |
|
DT-(G)-120 |
12.5 |
20 |
15 |
96 |
48 |
|
DT-(G)-150 |
12.5 |
22 |
16.5 |
103 |
52 |
|
DT-(G)-185 |
12.5 |
25 |
18.5 |
105 |
55 |
|
DT-(G)-240 |
12.5 |
27 |
21 |
120 |
60 |
|
DT-(G)-300 |
17 |
31 |
24 |
135 |
65 |
|
DT-(G)-400 |
21 |
34 |
26.5 |
150 |
70 |
|
DT-(G)-500 |
21 |
38 |
30 |
170 |
75 |
|
DT-(G)-630 |
21 |
45 |
35 |
210 |
85 | |
网源电力科技有限公司位于中国东方电器城——柳市，是一家集研究、开发、生产、销售、服务于一体电力科技企业，专业生产
C型线夹，
创通线夹，
H型线夹，电力金具、冷/热缩电缆附件、合成绝缘子、高压隔离开关、跌落式熔断器、氧化锌避雷器、真空断路器、负荷分界开关等产品！
