型号
Type |
额定电压
Rated
voltage
(KV) |
额定电流
Rated
Current
(A) |
4S热稳定电流
4S Heat
steady
e.c |
动稳定电流
Shock
voltage
A |
冲击耐压
Impulse withstand
voltage |
工频耐压
Prower-frequency
withstand voltage |
相对的
To earth |
断口间
Across the Isolating Cistance KV |
相对的
To earth |
断口间
Across the Isolating
Cistance KV |

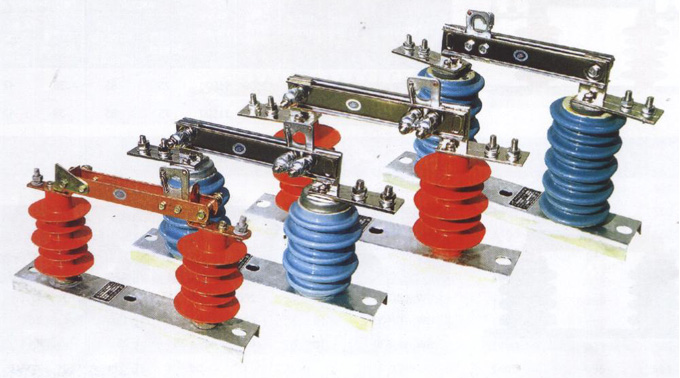

| HGW9-10W/400 |
12 |
400 |
12500 |
31500 |
75 |
85 |
38 |
42 |
| HGW9-10W/630 |
12 |
630 |
12500 |
31500 |
75 |
85 |
38 |
42 | |
 |
型号
Type |
额定电压
Rated
voltage
(KV) |
额定电流
Rated
Current
(A) |
极限通过电流KA |
10秒热稳定电流
10S Heat steady
current KA |
| 峰值 |
有效值 |

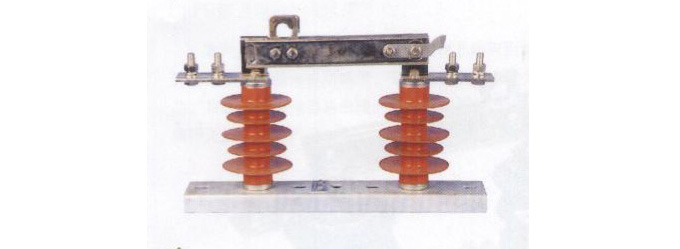

| GW9-10/200 |
10 |
200 |
5 |
9 |
5 |
| GW9-10/400 |
10 |
400 |
31 |
15 |
10 |
| GW9-10/630 |
10 |
630 |
35 |
25 |
14 | |
 |
型号
Type |
额定电压
Rated
voltage
(KV) |
额定电流
Rated
Current
(A) |
冲击耐压
Impulse withstand
voltage |
工频耐压
Prower-frequency
withstand voltage |
相对的
To earth |
断口间
Across the Isolating Cistance KV |
相对的
To earth |
断口间
Across the Isolating
Cistance KV |

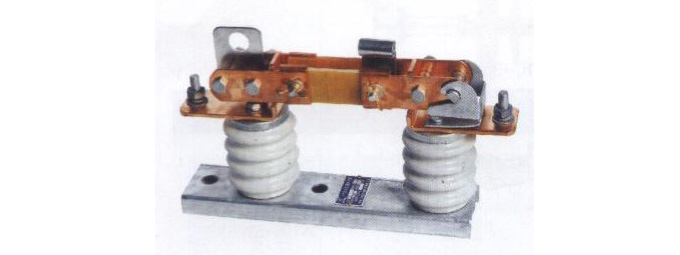

| JDW2-0.5/200 |
0.5 |
200 |
4 |
5 |
2 |
3 |
| JDW2-0.5/400 |
0.5 |
400 |
4 |
5 |
2 |
3 |
| JDW2-0.5/600 |
0.5 |
600 |
4 |
5 |
2 |
3 | |
 |
型号
Type |
额定电压
Rated
voltage
(KV) |
额定电流
Rated
Current
(A) |
冲击耐压
Impulse withstand
voltage |
工频耐压
Prower-frequency
withstand voltage |
相对的
To earth |
断口间
Across the Isolating Cistance KV |
相对的
To earth |
断口间
Across the Isolating
Cistance KV |

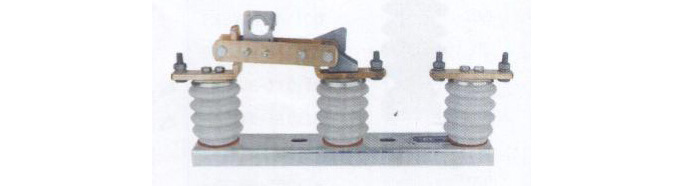

| JDW3-0.5/200 |
0.5 |
200 |
4 |
5 |
2 |
3 |
| JDW3-0.5/400 |
0.5 |
400 |
4 |
5 |
2 |
3 |
| JDW3-0.5/600 |
0.5 |
600 |
4 |
5 |
2 |
3 | |
 |
