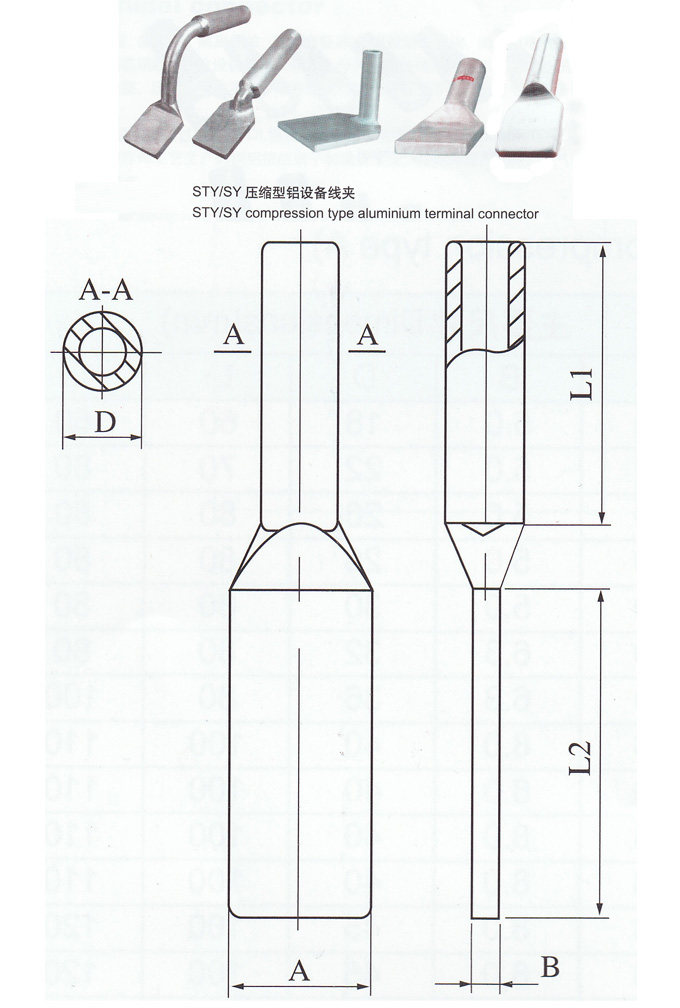

1)铝设备线夹(压缩型A型)
Aluminium terminal connectors(compression type A) |
 |
| 型号Catalog No. |
适用导线Suitable Conductor |
主要尺寸Dimensions(mm) |
重量
Weight
（kg） |
| 型号TYPE |
外径mm |
A |
B |
D |
L1 |
L2 |
| SY-35/6A |
LGJ-35/6 |
8.16 |
30 |
8 |
16 |
60 |
60 |
0.1 |
| SY-50/8A |
LGJ-50/8 |
9.60 |
30 |
8 |
18 |
60 |
60 |
0.1 |
| SY-70/10A |
LGJ-70/10 |
11.40 |
40 |
8 |
22 |
70 |
60 |
0.1 |
| SY-95/15A |
LGJ-95/15 |
13.61 |
40 |
8 |
26 |
80 |
60 |
0.2 |
| SY-120/7A |
LGJ-120/7 |
14.50 |
50 |
10 |
26 |
80 |
80 |
0.2 |
| SY-120/20A |
LGJ-120/20 |
15.07 |
| SY-150/8A |
LGJ-150/8 |
16.00 |
50 |
10 |
30 |
90 |
80 |
0.3 |
| SY-150/20A |
LGJ-150/20 |
16.67 |
| SY-185/10A |
LGJ-185/10 |
18.00 |
50 |
12 |
32 |
90 |
80 |
0.3 |
| SY-185/25-30A |
LGJ-185/25 |
18.90 |
| LGJ-185/30 |
18.88 |
| SY-210/10A |
LGJ-210/10 |
19.00 |
50 |
12 |
34 |
100 |
80 |
0.4 |
| SY-210/25A |
LGJ-210/25 |
19.98 |
| SY-240/30-40A |
LGJ-240/30 |
21.60 |
50 |
12 |
36 |
100 |
80 |
0.5 |
| LGJ-240/40 |
21.66 |
| SY-300/15A |
LGJ-300/15 |
23.01 |
63 |
16 |
40 |
110 |
100 |
0.6 |
| SY-300/20A |
LGJ-300/20 |
23.43 |
| SY-300/25-40A |
LGJ-300/25 |
23.76 |
| LGJ-300/40 |
23.94 |
| SY-400/20-35A |
LGJ-400/20 |
26.91 |
63 |
16 |
45 |
120 |
100 |
0.7 |
| LGJ-400/25 |
26.64 |
| LGJ-400/35 |
26.82 |
| SY-400/50-65A |
LGJ-400/50 |
27.63 |
| LGJ-400/65 |
28.00 |
| SY-500/35-45A |
LGJ-500/35 |
30.00 |
80 |
16 |
52 |
130 |
100 |
1.0 |
| LGJ-500/45 |
30.00 |
| SY-500/65A |
LGJ-500/65 |
30.96 |
| SY-630/45A |
LGJ-630/45 |
33.60 |
100 |
20 |
60 |
150 |
100 |
1.2 |
| SY-630/55A |
LGJ-630/55 |
34.32 |
| SY-800/55A |
LGJ-800/55 |
38.40 |
125 |
22 |
65 |
170 |
125 |
2.1 |
| SY-800/70-100A |
LGJ-800/70 |
38.58 |
| LGJ-800/100 |
38.98 | |
|

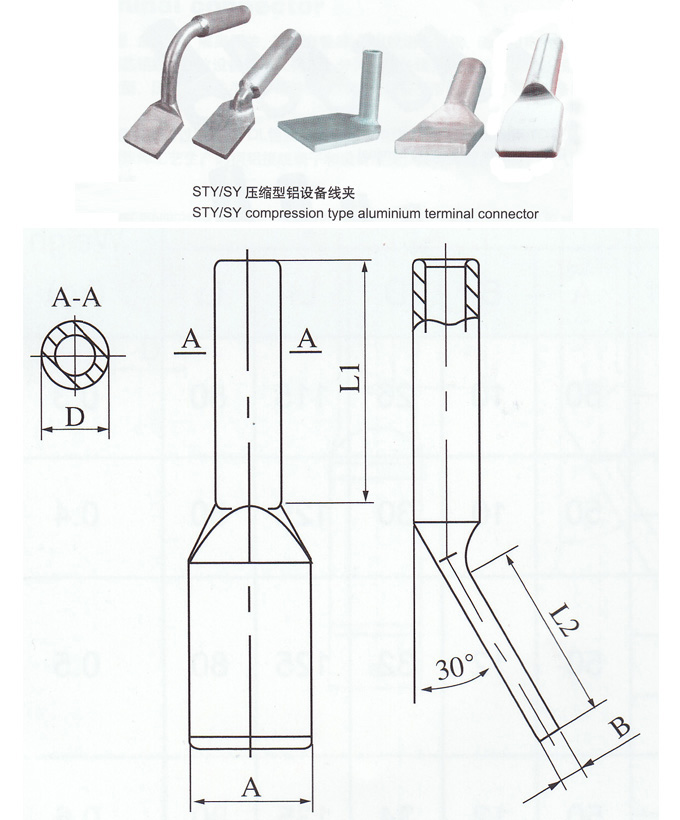

2)铝设备线夹(压缩型30°)
Aluminium terminal connectors(compression 30°) |
 |
| 型号Catalog No. |
适用导线Suitable Conductor |
主要尺寸Dimensions(mm) |
重量
Weight
（kg） |
| 型号TYPE |
外径mm |
A |
B |
D |
L1 |
L2 |
| SY-35/6B |
LGJ-35/6 |
8.16 |
30 |
8 |
16 |
60 |
60 |
0.1 |
| SY-50/8B |
LGJ-50/8 |
9.60 |
30 |
8 |
18 |
60 |
60 |
0.1 |
| SY-70/10B |
LGJ-70/10 |
11.40 |
40 |
8 |
22 |
70 |
60 |
0.1 |
| SY-95/15B |
LGJ-95/15 |
13.61 |
40 |
8 |
26 |
80 |
60 |
0.2 |
| SY-120/7B |
LGJ-120/7 |
14.50 |
50 |
10 |
26 |
80 |
80 |
0.2 |
| SY-120/20B |
LGJ-120/20 |
15.07 |
| SY-150/8B |
LGJ-150/8 |
16.00 |
50 |
10 |
30 |
90 |
80 |
0.3 |
| SY-150/20B |
LGJ-150/20 |
16.67 |
| SY-185/10B |
LGJ-185/10 |
18.00 |
50 |
12 |
32 |
90 |
80 |
0.3 |
| SY-185/25-30B |
LGJ-185/25 |
18.90 |
| LGJ-185/30 |
18.88 |
| SY-210/10B |
LGJ-210/10 |
19.00 |
50 |
12 |
34 |
100 |
80 |
0.3 |
| SY-210/25B |
LGJ-210/25 |
19.98 |
| SY-240/30-40B |
LGJ-240/30 |
21.60 |
50 |
12 |
36 |
100 |
80 |
0.4 |
| LGJ-240/40 |
21.66 |
| SY-300/15B |
LGJ-300/15 |
23.01 |
63 |
16 |
40 |
110 |
100 |
0.7 |
| SY-300/20B |
LGJ-300/20 |
23.43 |
| SY-300/25-40B |
LGJ-300/25 |
23.76 |
| LGJ-300/40 |
23.94 |
| SY-400/20-35B |
LGJ-400/20 |
26.91 |
63 |
16 |
45 |
120 |
100 |
0.7 |
| LGJ-400/25 |
26.64 |
| LGJ-400/35 |
26.82 |
| SY-400/50-65B |
LGJ-400/50 |
27.63 |
| LGJ-400/65 |
28.00 |
| SY-500/35-45B |
LGJ-500/35 |
30.00 |
80 |
16 |
52 |
130 |
100 |
0.7 |
| LGJ-500/45 |
30.00 |
| SY-500/65B |
LGJ-500/65 |
30.96 |
| SY-630/45B |
LGJ-630/45 |
33.60 |
100 |
20 |
60 |
150 |
100 |
1.5 |
| SY-630/55B |
LGJ-630/55 |
34.32 |
| SY-800/55B |
LGJ-800/55 |
38.40 |
125 |
22 |
65 |
170 |
125 |
2.1 |
| SY-800/70-100B |
LGJ-800/70 |
38.58 |
| LGJ-800/100 |
38.98 | |
|

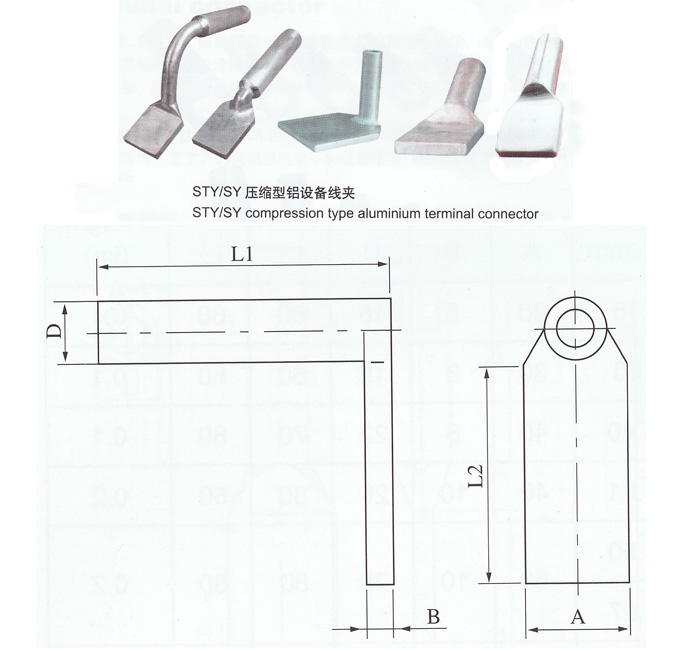

3)铝设备线夹(压缩型90°)
Aluminium terminal connectors(compression 90°) |
 |
| 型号Catalog No. |
适用导线Suitable Conductor |
主要尺寸Dimensions(mm) |
重量
Weight
（kg） |
| 型号TYPE |
外径mm |
A |
B |
D |
L1 |
L2 |
| SY-120/7C |
LGJ-120/7 |
14.50 |
50 |
10 |
26 |
115 |
80 |
0.3 |
| SY-120/20C |
LGJ-120/20 |
15.07 |
| SY-150/8C |
LGJ-150/8 |
16.00 |
50 |
10 |
30 |
125 |
80 |
0.4 |
| SY-150/20C |
LGJ-150/20 |
16.67 |
| SY-185/10C |
LGJ-185/10 |
18.00 |
50 |
12 |
32 |
125 |
80 |
0.5 |
| SY-185/25-30C |
LGJ-185/25 |
18.90 |
| LGJ-185/30 |
18.88 |
| SY-210/10C |
LGJ-210/10 |
19.00 |
50 |
12 |
34 |
135 |
80 |
0.6 |
| SY-210/25C |
LGJ-210/25 |
19.98 |
| SY-240/30-40C |
LGJ-240/30 |
21.60 |
50 |
12 |
36 |
135 |
80 |
0.7 |
| LGJ-240/40 |
21.66 |
| SY-300/15C |
LGJ-300/15 |
23.01 |
63 |
16 |
40 |
145 |
100 |
0.7 |
| SY-300/20AC |
LGJ-300/20 |
23.43 |
| SY-300/25-40C |
LGJ-300/25 |
23.76 |
| LGJ-300/40 |
23.94 |
| SY-400/20-35C |
LGJ-400/20 |
26.91 |
63 |
16 |
45 |
155 |
100 |
0.8 |
| LGJ-400/25 |
26.64 |
| LGJ-400/35 |
26.82 |
| SY-400/50-65C |
LGJ-400/50 |
27.63 |
| LGJ-400/65 |
28.00 |
| SY-500/35-45C |
LGJ-500/35 |
30.00 |
80 |
16 |
52 |
165 |
100 |
1.0 |
| LGJ-500/45 |
30.00 |
| SY-500/65C |
LGJ-500/65 |
30.96 |
| SY-630/45C |
LGJ-630/45 |
33.60 |
100 |
20 |
60 |
185 |
100 |
1.7 |
| SY-630/55C |
LGJ-630/55 |
34.32 |
| SY-800/55AC |
LGJ-800/55 |
38.40 |
125 |
22 |
65 |
210 |
125 |
2.5 |
| SY-800/70-100C |
LGJ-800/70 |
38.58 |
| LGJ-800/100 |
38.98 | |
